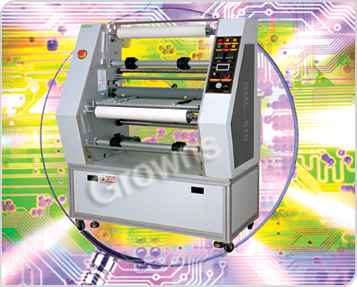

| Dry Film Laminator-610 |
|
|
|
| Featrues： |
|
| ◆ Upper and lower integrates airframe designer, ensure whole rollers balance. |
| ◆ Heating Rollers are made of special silicon,Adapt to layer press soft especially, hard board. |
| ◆ In puts mercury electricity conduct revolve style glow device, heat is average quick. |
| ◆ Accurate infra-red K shape temperature constant system,control roller temperature precisely. |
| ◆ Twin cylinders ascend and descend, guarantee rollers about pressures average. |
| ◆ Installing to gauge,enhance install membrane speed, decrease dry membrane waste. | |
|
Specifications： |
|
| |
Power |
AC 220V 1Φ 50/60Hz 15A |
| |
Dimesion Range Of Plate(L*W*T) |
(250~610mm)*(250~650mm)*(0.05~3.0mm) |
| |
Dry Film Size(W*T) |
(250~650mm)*(15um) |
| |
Speed |
1~4M/min |
| |
Min. Air Pressure |
5kg/cm2 16L/min |
| |
Laminating Temperature |
50~200℃ Adjustable |
| |
Exhaust Emission |
25 L/min以上 |
| |
Dimension(L*W*H) |
735mm×1130mm×1400mm |
| |
Weight |
| |
|
| |
|
|
